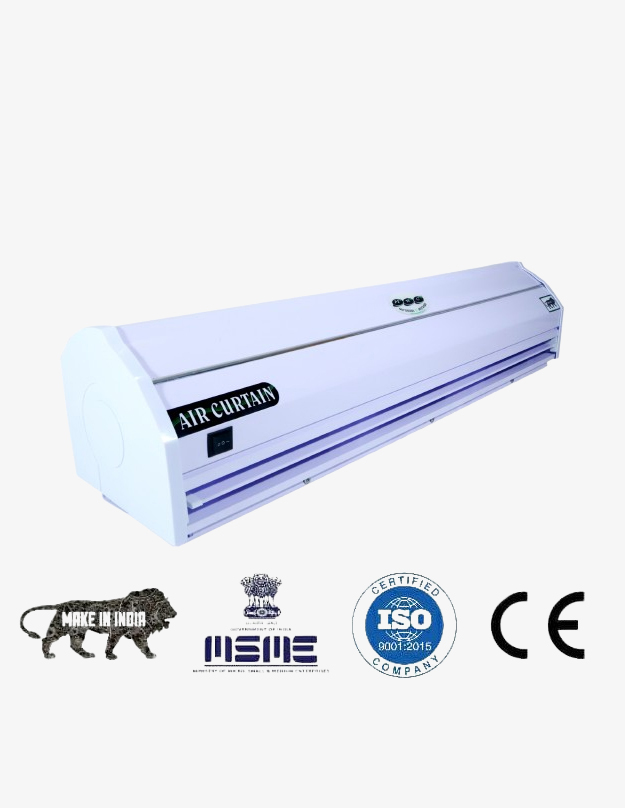

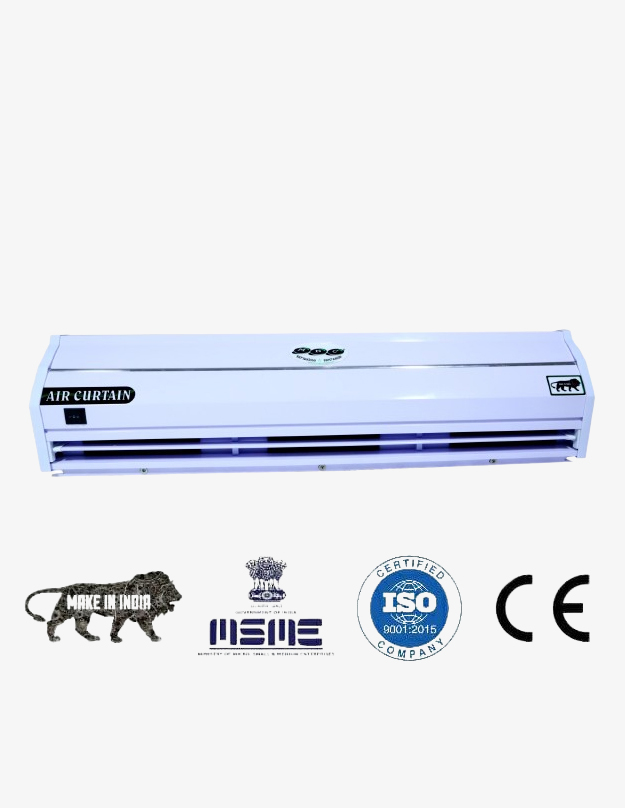

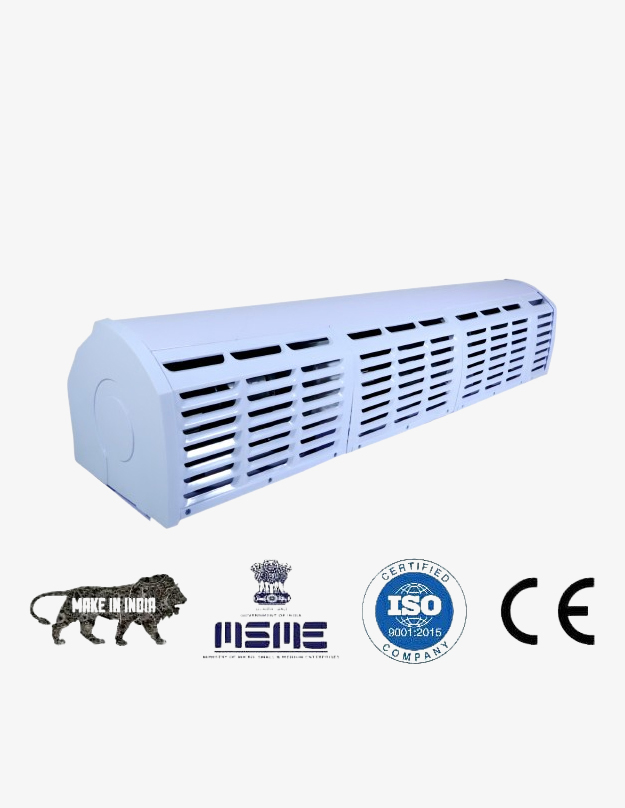

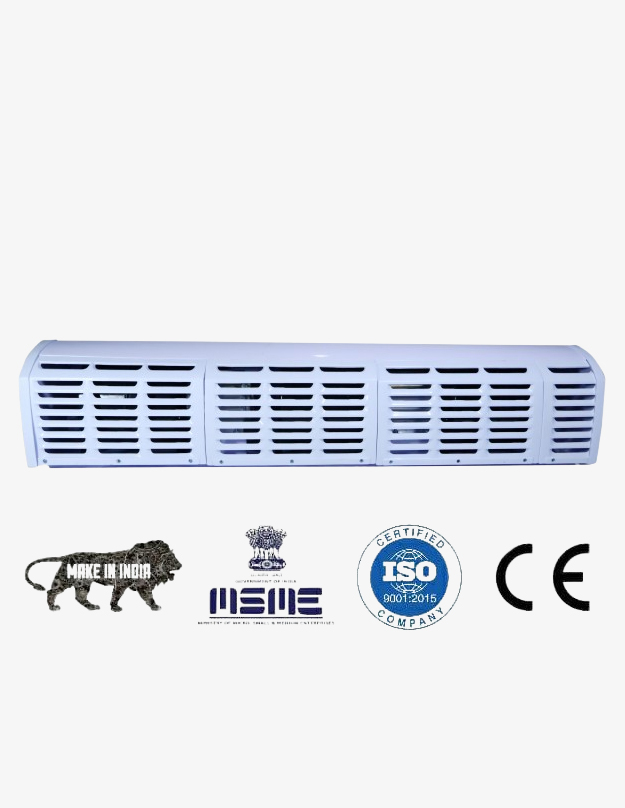

TECHNICAL DETAIL AX MODEL ALUMINIUM BODY AIR CURTAIN : • Standard height of curtain formed : UPTO 10 FT. • 2 speed Maximum Air Velocity at Nozzle Discharge (CFM) : High 22 m/s & low 18 m/s. • Noise level at a distance of 10’ from the curtain Db : 57 DB • No. of Blower : 5 BLOWERS • No. of Motors : 120w-2 & 80w-1(3Motors) • Phase : Single Phase • RPM : 2800 RPM • Air Curtain thickness : 1 mm • Body Material : ALUMINIUM BODY & BACK PLATE MS POWDER COATING. • Motor No. of Shaft : 1 single ,2 Double Shaft • Blower : ABS • Electrical Motor : MNC ENGINEERING • Maintenance Points for oiling : Not Required • % Insect / dust rejection : 80% • Air Curtain Operation : Electrical • Weight (Approx) Kgs. 24 • Motor HP : 0.20 HP • Motor winding : Cooper winding • Bearing : 2 RS sheel Bearing
