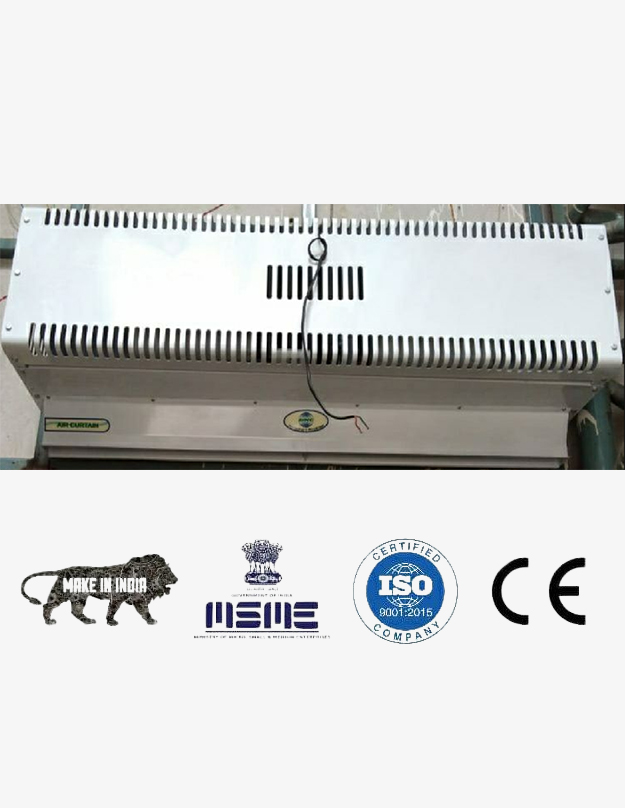

TECHNICAL DETAIL C MODEL AIR CURTAIN : • Standard height of curtain formed : UPTO 16 FT. • 1 speed Maximum Air Velocity at Nozzle Discharge (CFM) : High 23 m/s & 24 m/s . • Noise level at a distance of 10’ from the curtain Db : 59 DB • No. of Blower : 2 BLOWERS • No. of Motors :1 Motor • Phase : Single Phase • RPM : 1400 RPM • Air Curtain thickness : 1 mm • Body Material : ALL BODY MS POWDER COATING • Motor No. of Shaft : Double Shaft • Blower : Aluminum • Blower Size : 9''X 8'' • Electrical Motor : MNC BRAND • Maintenance Points for oiling : Not Required • % Insect / dust rejection : 80% • Air Curtain Operation : Electrical • Weight (Approx.) Kgs. 30 • Motor HP : 0.50 HP & 1/2 HP • Motor winding : Cooper winding • Bearing : 2 RS sheel Bearing • Overall Dimensions : L 1220 MM W 356 MM H 457 MM
