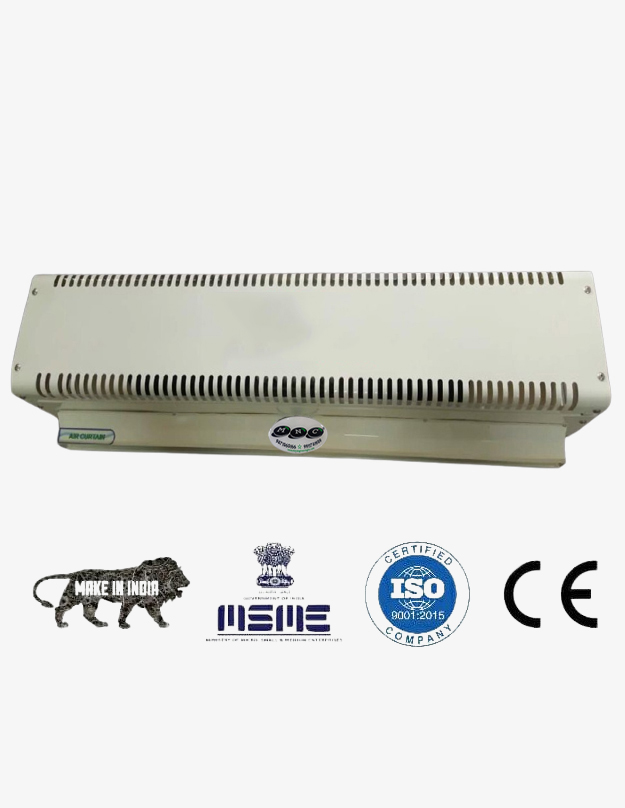

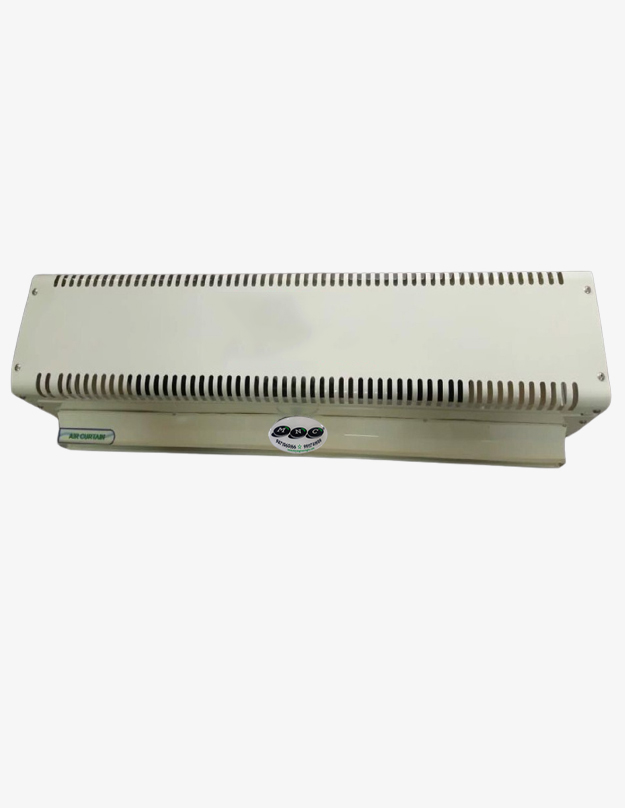

MEI 400 SH (4FT)

Category: AIR CURTAIN

Model:MEI 400 SH (4FT)

Ask Price

Your email address will not be published. Required fields are marked *

Description

Standard height of curtain formed : UP TO 10 FT Speed Maximum Air Velocity at Nozzle Discharge (CFM) : High 25 m/s TO 26 M/S • Noise level at a distance of 10’ from the curtain Db : 60 DB • No. of Blower : 4 BLOWERS • No. of Motors : (2 Motors) • Phase : Single Phase • RPM : 2800 RPM • Air Curtain thickness : 1 mm Body Material : ALL BODY MS POWDER COATING • motor No. of Shaft : Double Shaft • Blower : ALUMINIUM • Electrical Motor: Double shaft • BLOWER : Aliminium • BLOWER SIZE : 6” x 8” • ELECTRICAL MOTOR: MNC BRAND • Maintenance Points for oiling : No require • .%Insect / Dust : 80% • Air Curtain Operation : Electrical • Weight (Approx) Kgs. 45 • Motor HP : 3/4 HP • Motor winding : Cooper winding • Bearing : 2 RS sheel Bearing

Additional Information

Model MEI 400 SH (4FT)
Height UP TO 10 FT
Weight 15 kg
