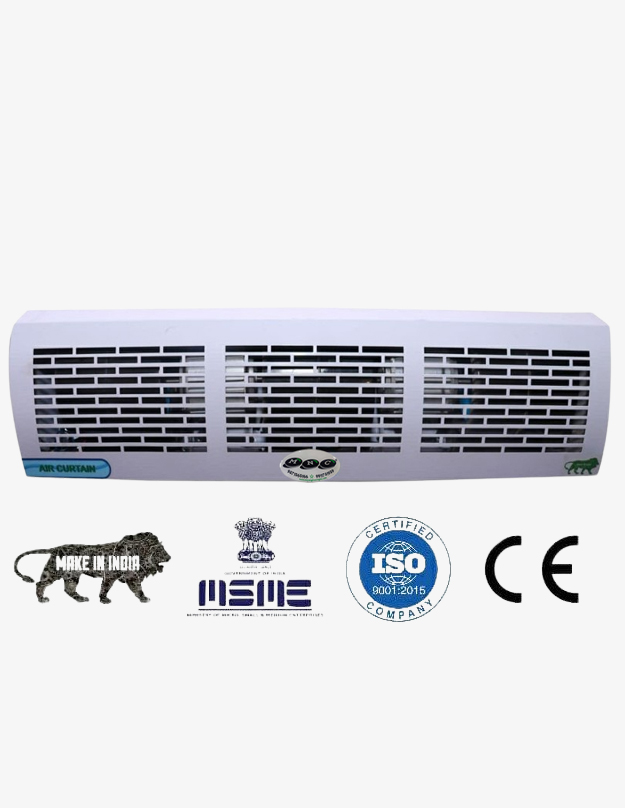

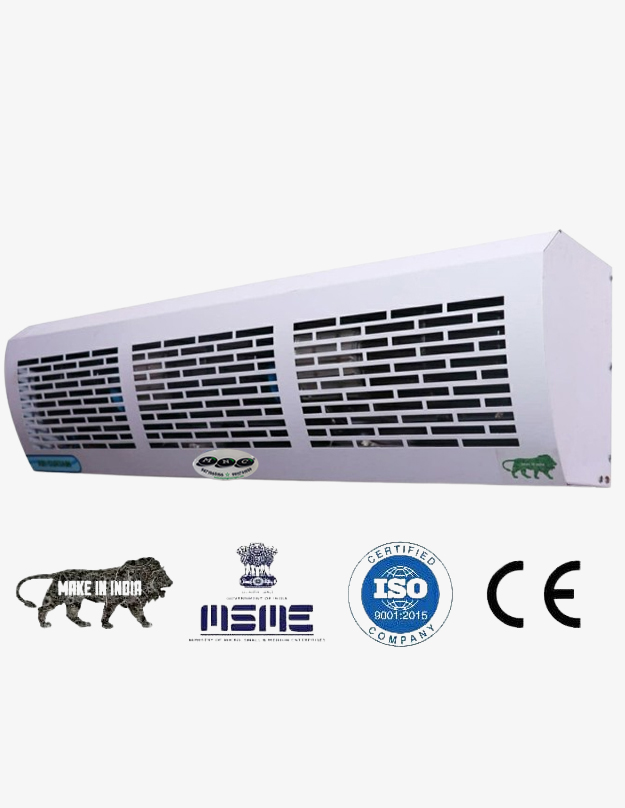

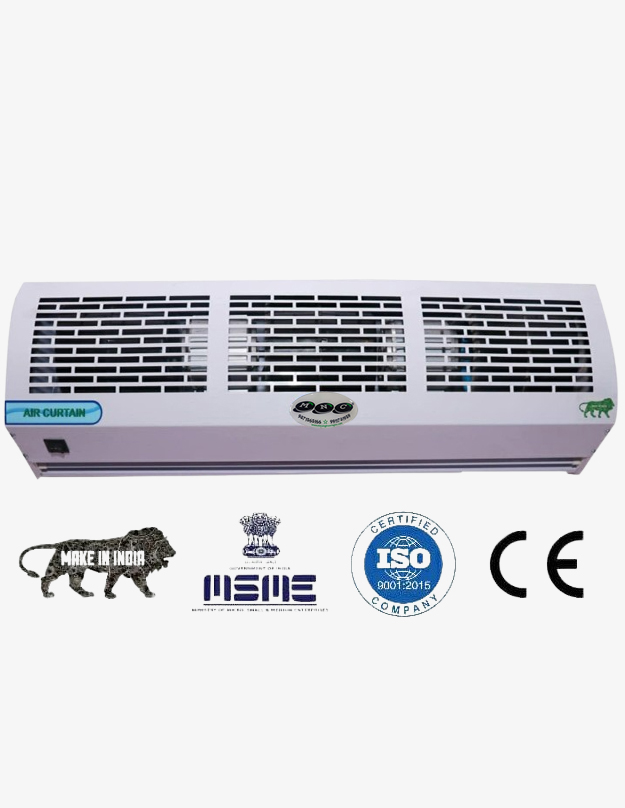

TECHNICAL DETAIL NX MODEL AIR CURTAIN : • Standard height of curtain formed : UPTO 10 FT. • 2 speed Maximum Air Velocity at Nozzle Discharge (CFM) : High 22 m/s & low 18 m/s. • Noise level at a distance of 10’ from the curtain Db : 55 DB • No. of Blower : 4 BLOWERS • No. of Motors : 120w-1& 80w-1 (2Motors) • Phase : Single Phase • RPM : 2800 RPM • Air Curtain thickness : 1 mm & 1.2MM • Body Material : ALL BODY MS POWDER COATING • Motor No. of Shaft : 2 Double Shaft • Blower : ABS • Electrical Motor : MNC BRAND • Maintenance Points for oiling : Not Required • % Insect / dust rejection : 80% • Air Curtain Operation : Electrical • Weight (Approx) Kgs. 18 • Motor HP : 0.20 HP • Motor winding : Cooper winding • Bearing : 2 RS sheel Bearing • Overall Dimensions : L 1200 MM W 210 MM H 225 MM
