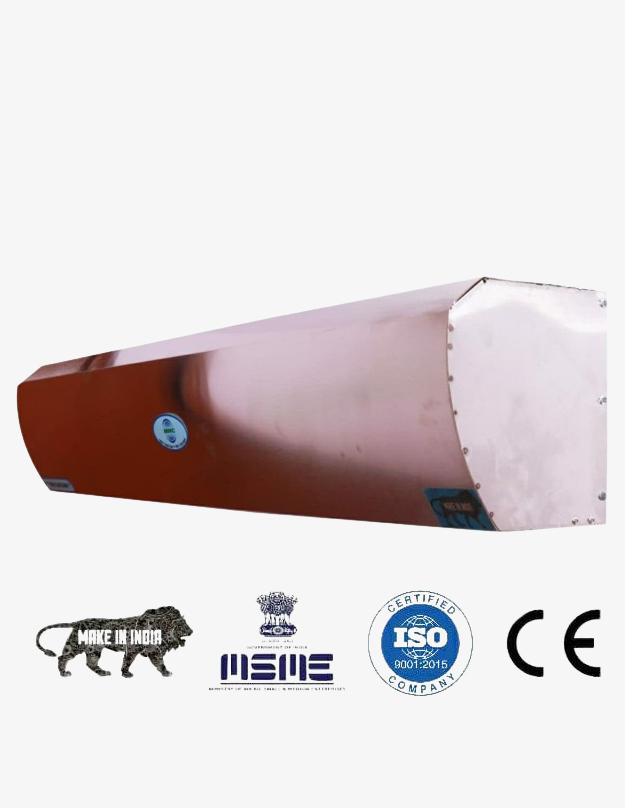

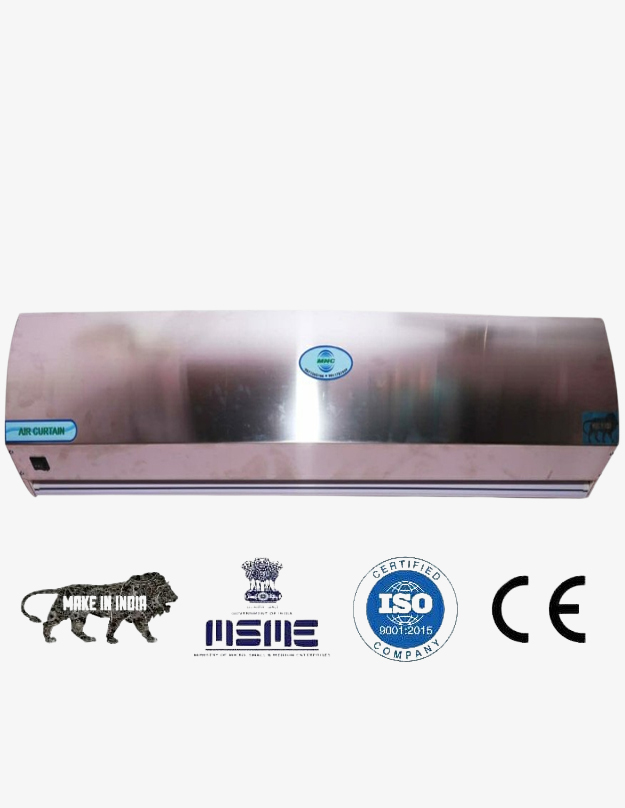

MEI120 SS3 (4FT)

Category: AIR CURTAIN

Model:MEI120 SS3 (4FT)

Ask Price

Your email address will not be published. Required fields are marked *

Description

• Standard height of curtain formed : UP TO 10 FT Speed Maximum Air Velocity at Nozzle Discharge (CFM) : High 22 m/s TO 18 M/S • Noise level at a distance of 10’ from the curtain Db : 55 DB • No. of Blower : 4 BLOWERS • No. of Motors : 120w-2 (2 Motors) • Phase : Single Phase • RPM : 2800 RPM • Air Curtain thickness : 1 mm Body Material : ALL BODY ss304 sleek model • motor No. of Shaft : Double Shaft • BLOWER : ABS HAVY DUTY • ELECTRICAL MOTOR: MNC BRAND • Maintenance Points for oiling : No require • .%Insect / Dust : 80% • Air Curtain Operation : Electrical • Weight (Approx) Kgs. 18 • Motor HP : 0.20 HP • Motor winding : Cooper winding • Bearing : 2 RS sheel Bearing Overall Dimensions : L 1200 MM W 210 MM H 225 MM

Additional Information

Model MEI120 SS3 (4FT)
Height UP TO 10 FT
Weight 15Kg
